Two-Level: Sech Pulse 6π — Pulse Breakup

Define the Problem

First we need to define a sech pulse with the area we want. We’ll fix the width of the pulse and the area to find the right amplitude.

The full-width at half maximum (FWHM) \(t_s\) of the sech pulse is related to the FWHM of a Gaussian by a factor of \(1/2.6339157938\). (See §3.2.2 of my PhD thesis).

import numpy as np

SECH_FWHM_CONV = 1.0 / 2.6339157938
t_width = 1.0 * SECH_FWHM_CONV  # [τ]
print("t_width", t_width)

t_width 0.3796628587572578

mb_solve_json = """
{
  "atom": {
    "fields": [
      {
        "coupled_levels": [[0, 1]],
        "rabi_freq_t_args": {
          "n_pi": 6.0,
          "centre": 0.0,
          "width": %f
        },
        "rabi_freq_t_func": "sech"
      }
    ],
    "num_states": 2
  },
  "t_min": -2.0,
  "t_max": 10.0,
  "t_steps": 240,
  "z_min": -0.5,
  "z_max": 1.5,
  "z_steps": 100,
  "z_steps_inner": 2,
  "interaction_strengths": [
    10.0
  ],
  "savefile": "mbs-two-sech-6pi"
}
""" % (t_width)

from maxwellbloch import mb_solve

mbs = mb_solve.MBSolve().from_json_str(mb_solve_json)

We’ll just check that the pulse area is what we want.

print(
    "The input pulse area is {0:.3f}.".format(
        np.trapezoid(mbs.Omegas_zt[0, 0, :].real, mbs.tlist) / np.pi
    )
)

The input pulse area is 5.980.

Solve the Problem

Omegas_zt, states_zt = mbs.mbsolve(recalc=False)

/home/docs/checkouts/readthedocs.org/user_builds/maxwellbloch/envs/v0.11.0/lib/python3.11/site-packages/maxwellbloch/mb_solve.py:344: UserWarning: Savefile was built with maxwellbloch==0.10.0, current version is 0.11.0.
  self.load_results()

Plot Output

import matplotlib.pyplot as plt

%matplotlib inline
import numpy as np
import seaborn as sns

sns.set_style("darkgrid")

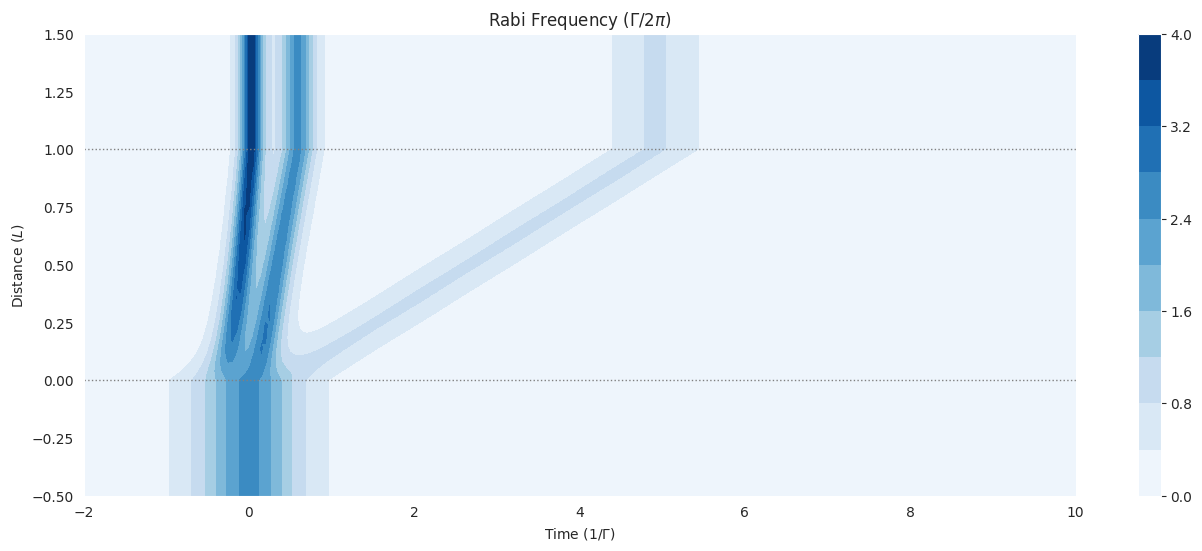

fig = plt.figure(1, figsize=(16, 6))
ax = fig.add_subplot(111)
cmap_range = np.linspace(0.0, 4.0, 11)
cf = ax.contourf(
    mbs.tlist,
    mbs.zlist,
    np.abs(mbs.Omegas_zt[0] / (2 * np.pi)),
    cmap_range,
    cmap=plt.cm.Blues,
)
ax.set_title(r"Rabi Frequency ($\Gamma / 2\pi $)")
ax.set_xlabel(r"Time ($1/\Gamma$)")
ax.set_ylabel("Distance ($L$)")
for y in [0.0, 1.0]:
    ax.axhline(y, c="grey", lw=1.0, ls="dotted")
plt.colorbar(cf);

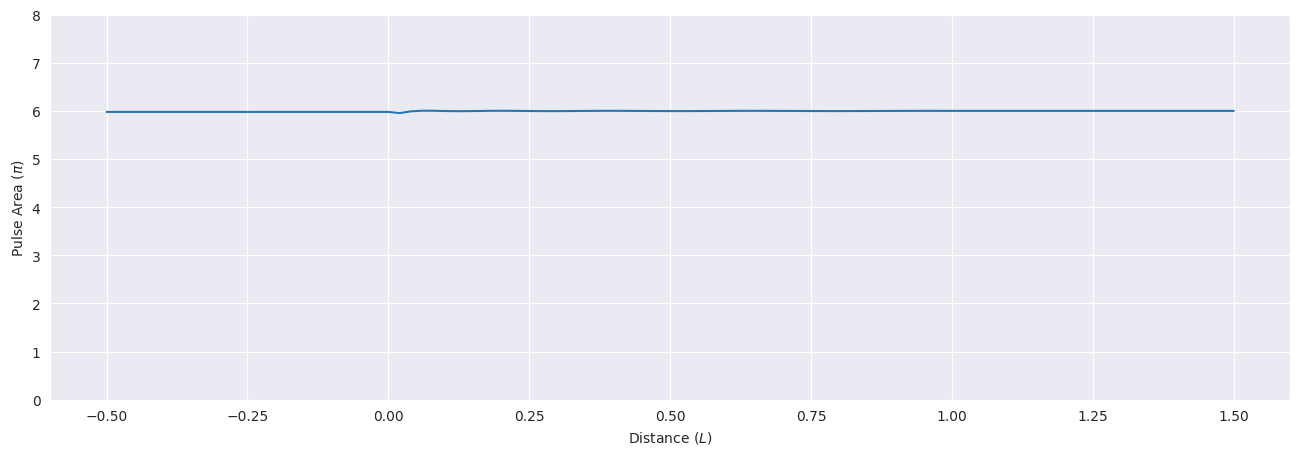

fig, ax = plt.subplots(figsize=(16, 5))
ax.plot(mbs.zlist, mbs.fields_area()[0] / np.pi, clip_on=False)
ax.set_ylim([0.0, 8.0])
ax.set_xlabel("Distance ($L$)")
ax.set_ylabel(r"Pulse Area ($\pi$)");

Analysis

The \(6 \pi\) sech pulse breaks up into three \(2 \pi\) pulses, which travel at a speed according to their width.
